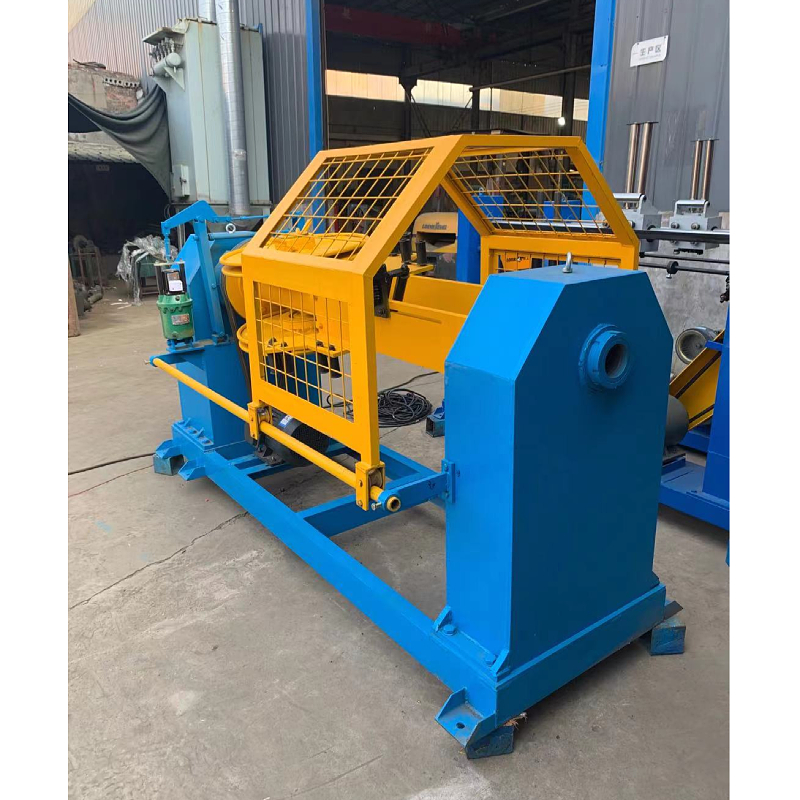

China manufacturer Cable Manufacturing Production Line Equipment
for SZ Stranding
Product Description
This machine is mainly used for armoring power cable, OPGW with
steel wire. It is also used for making steel wire rope.
The raw materials should be: the 15mm/ 20mm/ 25mm/ 30mm steel rape.
Technical ParameterSuitable cable dia. | Φ20—φ130 mm |
Non-metal tape size | Φ400/600×φ75×(15-80)mm |
Copper tape size | Φ600×φ150×(20-60) mm |
Steel tape size | Φ800×φ120×(15-60) mm |
Haul off speed | V≤25m/min(36 step speed adjusted) |
Haul off | 2500daN |
Pay off size | PN1600-3150MM |
Take up size | PN1600-3150MM |
Motor power | 11KW for tapping device 18.5 KW for steel tape device 15Kw for caterpillar 11kw for take up |
3.Configuration
(1)Tightness pay-off frame UT800(lifting motor 1.5kw-4)1-1Level
coil in equipment.
(2)Φ65 plastic extruder:adopt 15kw frequency
motor,heating-apparatus,machine head,wire mold
(3)Plastic drying apparatus(heating power4.5kw,drying power0.25kw)
(4)Auto-feeding apparatus(900w,lift 4m)
(5)Heating control cupboard
(6)Cooling channel 8m, circulating water pump.
(7)Level frame
(8)Blower machine UT30.
(9)Printer UT.
(10)Double wheel hauling and reeling machine
♥More Pictures:
Electric Wire and Cable equipment series:
♥♥♥Any questions,contact with me freely.
1.Waterproof packing with the international export standard by 20ft,
40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be
packed in Wooden Case or Iron Box. Other equipment will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.
Pre-sale:
1. Suggest to client suitable raw material, final product capacity.
2. Introduce machine's structure and features in detail, explain
the price component;
3. answer client concerned questions.
After-sale:
1. Start production as soon as receiving down payment.
2. Send photos of machine in manufacturing and finished photos to
client, for your better learn about the machine's condition.
3. Delivery machine in time, taking photos during loading, so you
can "remote monitoring" your goods.
4. Documents and certificate available in time.
5. Manual documents available. Engineer can be sent to client site
for installation instruction.
